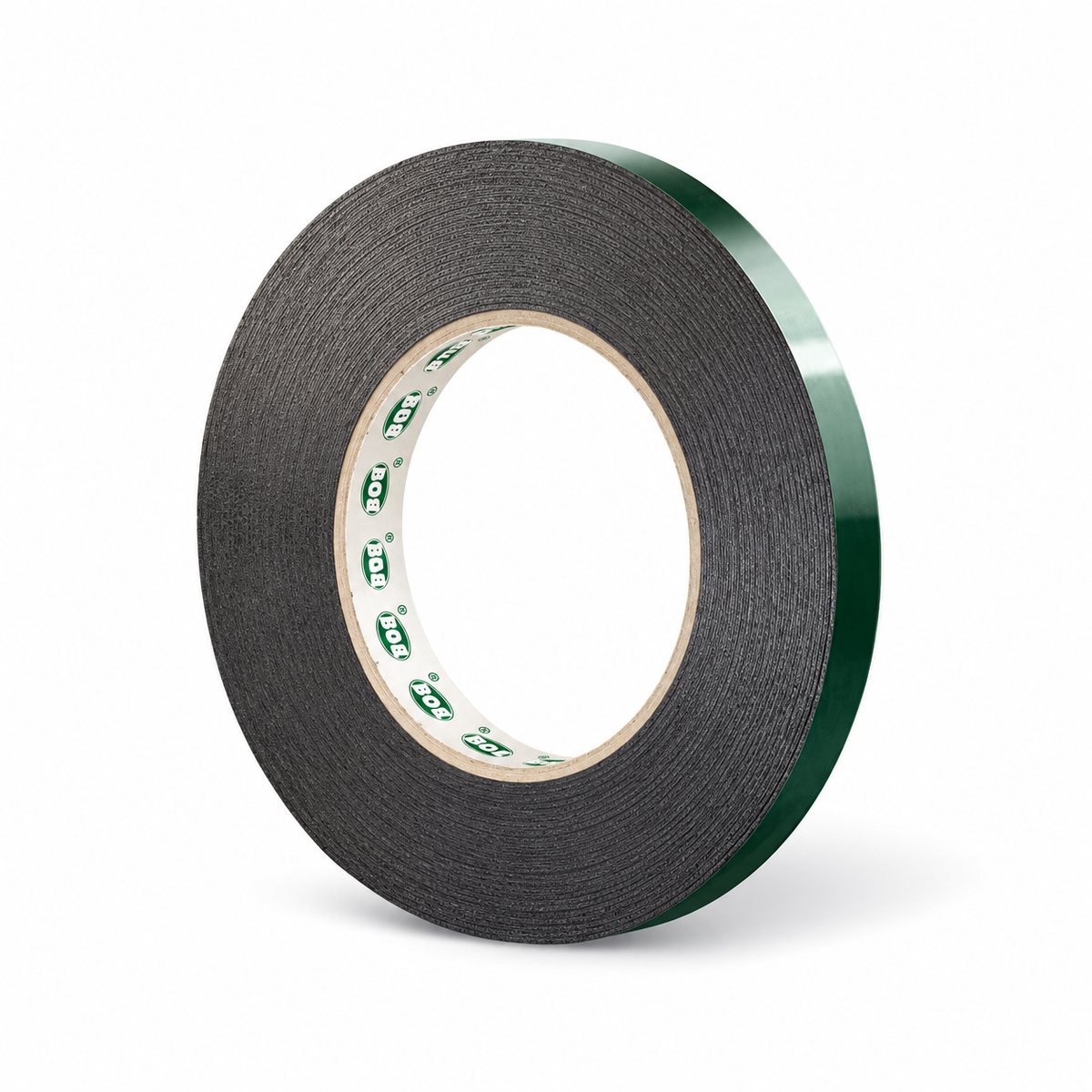

BOLL Double-Sided Foam Tape

BOLL Double-Sided Tape is designed for securely attaching vehicle mouldings, decorative trims and profiles.

The polyethylene foam carrier and solvent-based acrylic adhesive provide high mechanical strength and reliable adhesion.

The tape is resistant to water, salt, UV radiation and temperature fluctuations.

Suitable for automotive and industrial applications.

COLOUR

• Dark green

METHOD OF USE

The application surface must be dry, clean, free from dust and thoroughly degreased.

Apply the tape to the prepared surface and press it down firmly along its entire length.

Remove the protective liner, position the component carefully and press it firmly into place.

PHYSICAL PROPERTIES

Carrier: Polyethylene foam
Adhesive: Solvent-based acrylic
Total thickness: 935 µm
Carrier thickness: 860 µm
Total weight: 200 g/m²
Carrier weight: 76 g/m²
Adhesive weight: 124 g/m²
Adhesion to steel: 17 N/25 mm
Static shear: More than 168 hours with a 1 kg load
Tensile strength: 15 N/10 cm
Elongation: 400%
Temperature resistance: −20°C to +100°C
Application temperature: +13°C to +33°C

AVAILABLE SIZES

5 m rolls:

• 6 mm × 5 m
• 9 mm × 5 m
• 12 mm × 5 m
• 15 mm × 5 m
• 19 mm × 5 m

10 m rolls:

• 6 mm × 10 m
• 9 mm × 10 m
• 12 mm × 10 m
• 15 mm × 10 m
• 19 mm × 10 m

STORAGE

Protect the product from excessively low and high temperatures.

Avoid direct exposure to sunlight and store in a dry place.
