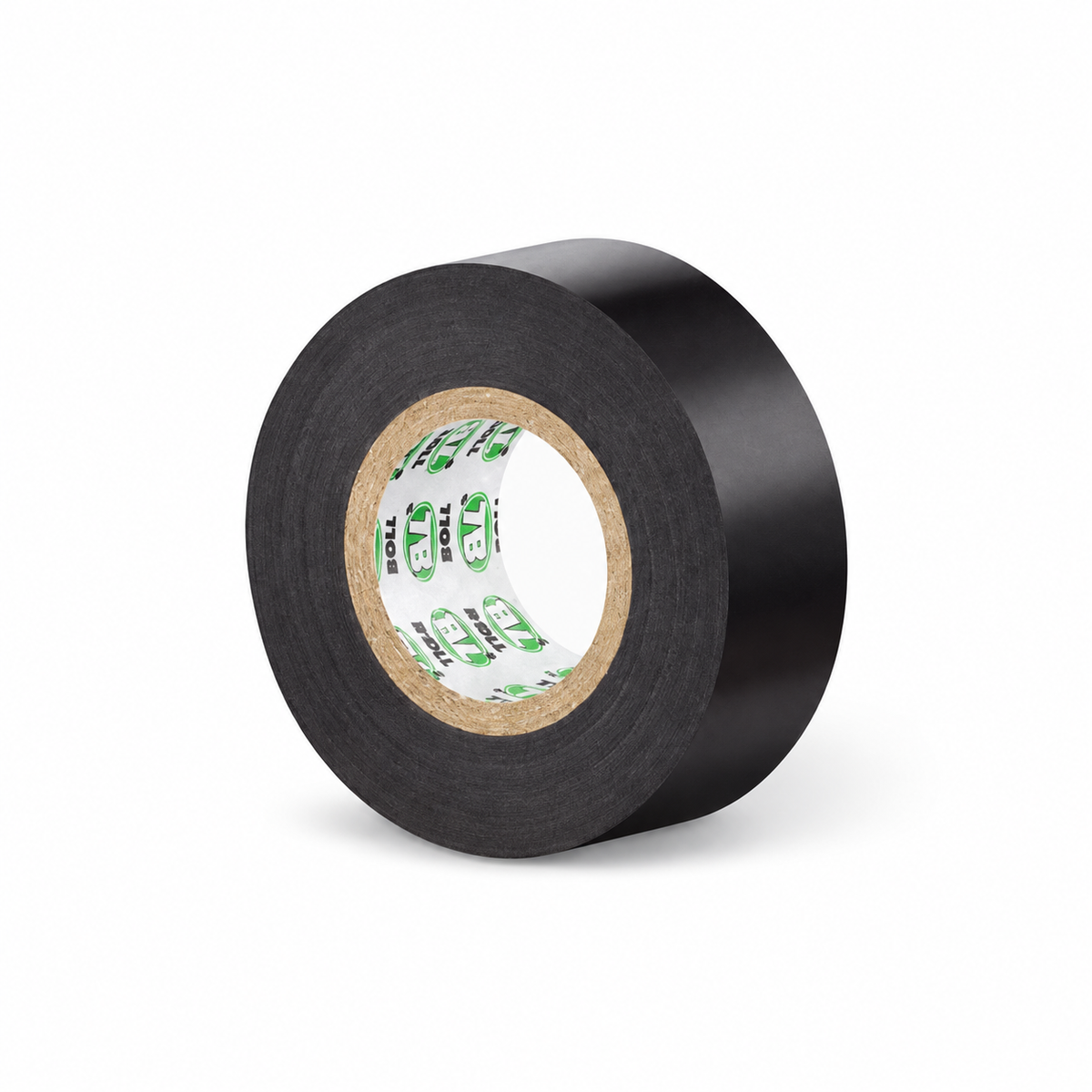

BOLL Electrical Insulation Tape
BOLL Insulating Tape is a flexible PVC electrical tape for insulating connections, forming wiring harnesses and general-purpose use. It offers excellent adhesion and sealing properties and is resistant to oils, acids and alkaline environments.
Available options
2 variantsBuy by the carton (trade)
10 units / carton£4.95 inc. VAT (£4.13 ex. VAT) per carton of 10 · 10% trade discount.
Safety & documentation
Always verify product specifications and safety information before use.
More about this product
BOLL Electrical Insulation Tape is designed for electrical insulation, assembling wiring harnesses and general-purpose applications.
It provides excellent adhesion and sealing properties, helping to restrict water ingress while increasing chemical resistance and electrical protection.
The tape is resistant to oils, acidic and alkaline environments. Its side surfaces are non-sticky for clean and convenient handling.
The tape is flame-retardant and self-extinguishing.
Certified according to EN 60454 for electrical insulation, classification IEC 60454-3-1-7/F-PVCp/90.
COLOUR
- Black
- Red
PHYSICAL PROPERTIES
Backing: Flexible PVC film
Adhesive: Synthetic rubber
Total thickness: 0.13 mm
Breaking strength: 210 N/10 mm²
Elongation at break: 215%
Adhesion to steel: 2.80 N/10 mm
Adhesion to backing: 2.60 N/10 mm
Temperature resistance: −10°C to +90°C
Flame behaviour: Self-extinguishing
AVAILABLE SIZE
- 19 mm × 10 m, Black
- 19 mm × 10 m, Red
STORAGE
Protect the product from excessively low and high temperatures.
Avoid direct exposure to sunlight, protect from increased humidity and store in a dry place.
