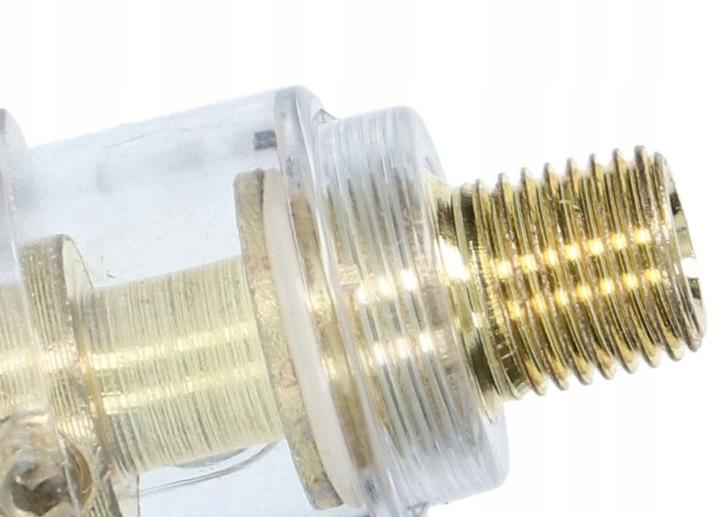

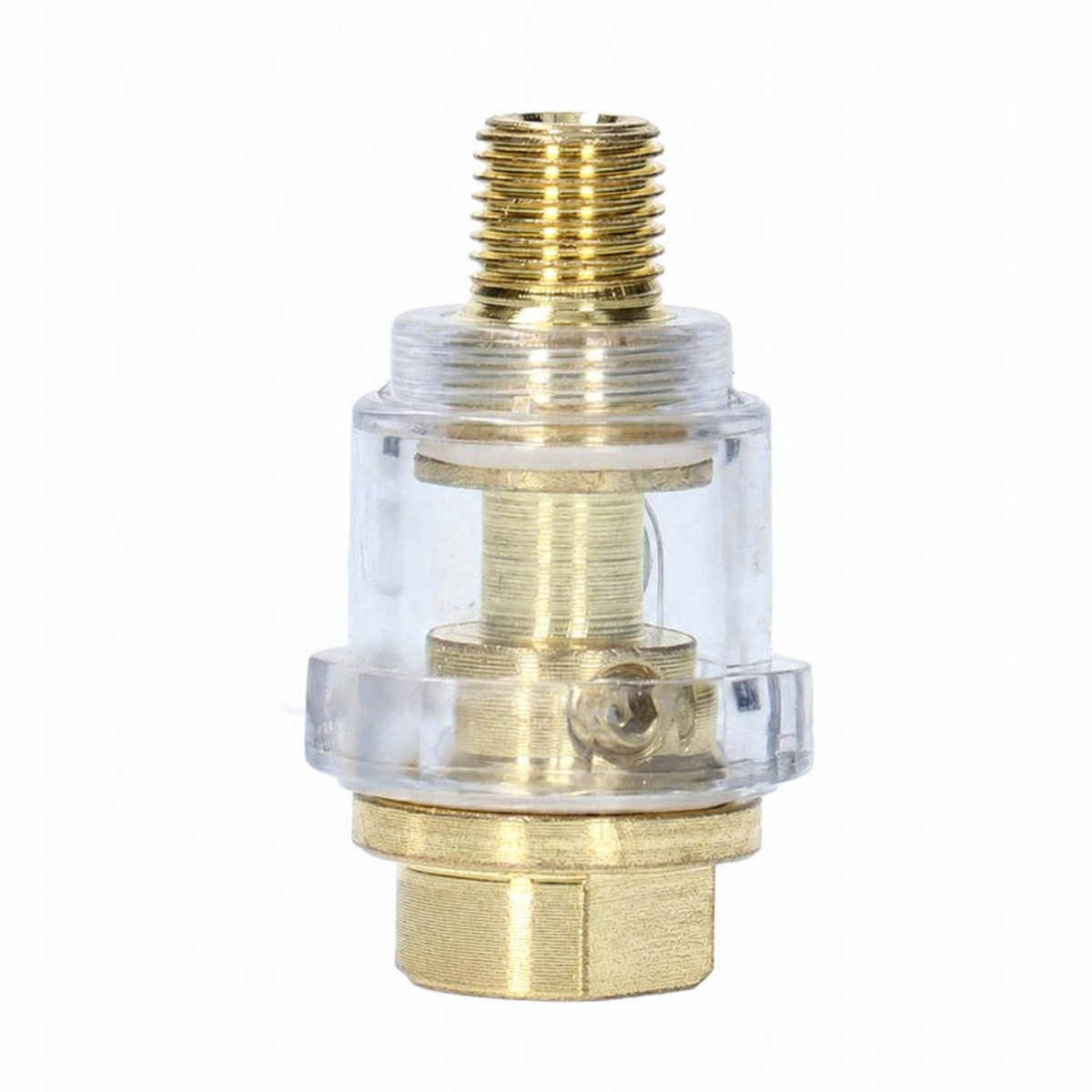

SICCO TOOLS Mini Inline Air Tool Oiler 1/4″

SICCO TOOLS Mini Inline Air Tool Oiler provides controlled lubrication directly at the air inlet of a pneumatic tool.

During operation, the lubricator delivers oil into the compressed-air stream, helping reduce friction between moving components.

Correct lubrication can reduce wear, extend tool service life and lower the risk of mechanical failure.

The compact oiler is installed directly beneath the pneumatic tool, providing more immediate lubrication than a remotely mounted wall lubricator.

It can operate with airflow in either direction and includes an adjustment for controlling the amount of supplied oil.

KEY FEATURES

• Automatic inline lubrication – delivers oil through the compressed-air supply during operation.
• Direct tool installation – provides lubrication close to the pneumatic mechanism.
• Adjustable oil delivery – allows the supplied oil quantity to be controlled.
• Bidirectional airflow – can be installed in either flow direction.
• Universal 1/4″ connections – suitable for common workshop pneumatic equipment.
• Reduces internal friction – helps protect moving tool components.
• Extends tool service life – regular lubrication reduces wear and the risk of seizure.
• Compact design – suitable for mobile tools and installations with limited space.

SUITABLE FOR

• Pneumatic orbital and dual-action sanders
• Air ratchets
• Pneumatic impact wrenches
• Pneumatic drills
• Air-powered grinders
• Other compatible pneumatic workshop tools
• Direct installation at the tool air inlet

Important: Do not use with paint spray guns, breathing-air equipment or other applications requiring completely oil-free compressed air.

TECHNICAL SPECIFICATION

Product type: Mini inline pneumatic lubricator
Connection: 1/4″ male and female threads
Compressed-air connection: 1/4″
Maximum working pressure: 10 bar
Maximum operating temperature: 52°C
Flow direction: Bidirectional
Oil quantity adjustment: Yes

KIT CONTENTS

• SICCO TOOLS Mini Inline Air Tool Oiler 1/4″
