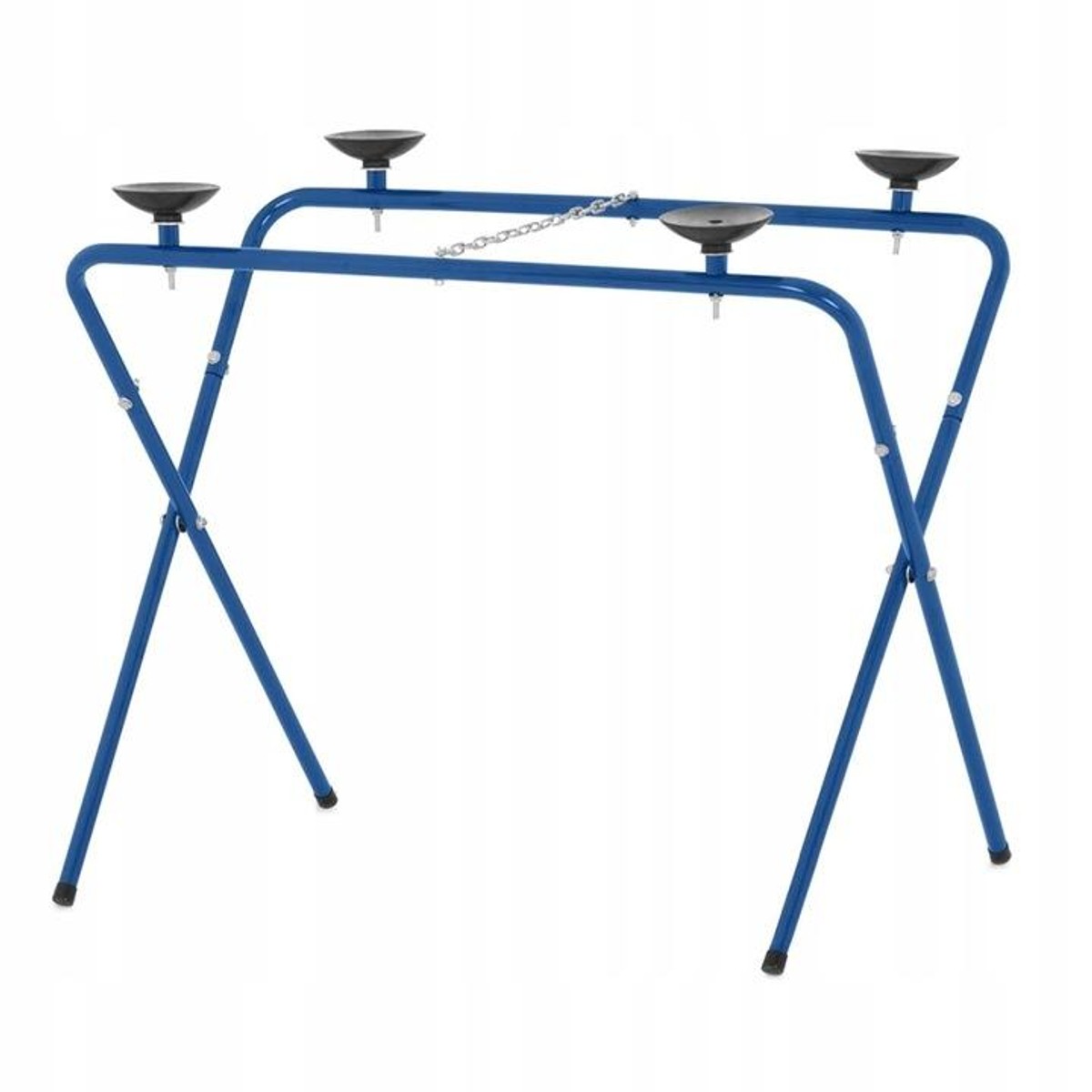

ITALKO Windscreen & Body Panel Stand with Suction Cups

ITALKO Adjustable Windscreen X-Stand is a strong and versatile workshop stand designed for preparing vehicle glass for installation and supporting body panels during repair and refinishing work.

Its durable steel-tube construction provides stability and supports loads of up to 150 kg.

The height and width can be adjusted using the supporting chains, allowing the stand to accommodate components of different sizes.

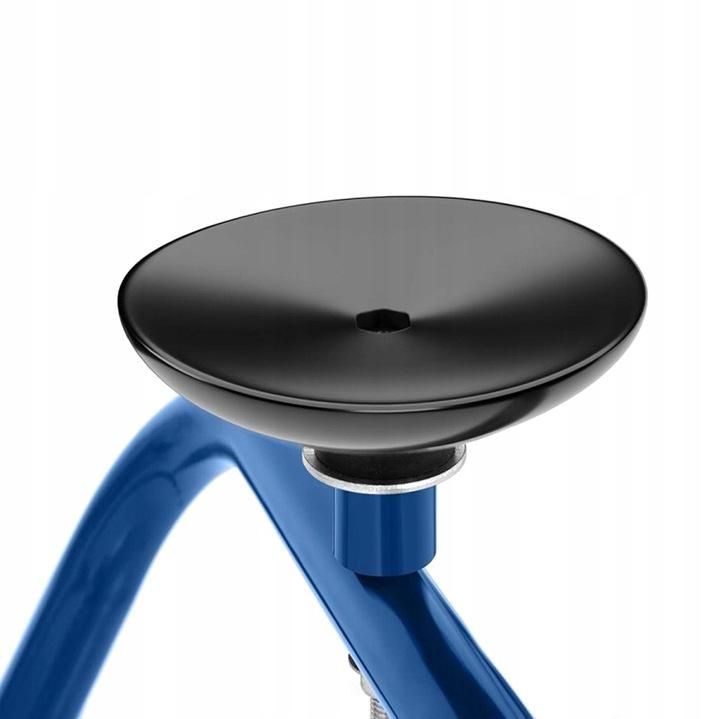

Four removable rubber suction cups, each measuring 125 mm in diameter, help prevent windscreens and other smooth components from moving while work is being carried out.

The suction cups can be removed when the stand is required for general workshop use.

Protective end caps cover the exposed edges and help prevent accidental scratching of supported components and nearby surfaces.

The stand is easy for one person to assemble and can be folded after use for more convenient, space-saving storage.

APPLICATIONS

Suitable for:

• Supporting windscreens and vehicle glass
• Preparing vehicle glass before installation
• Windscreen replacement work
• Supporting body panels and other components
• Bodyshop, workshop and garage use
• Painting and refinishing preparation

TECHNICAL SPECIFICATIONS

Construction: Steel tube
Maximum load capacity: 150 kg
Length: 105 cm
Adjustable height: 75–106 cm
Adjustable width: 48–90 cm
Number of suction cups: 4
Suction cup diameter: 125 mm
Tube diameter: 28 mm
Adjustment system: Chains
Suction cups: Removable
Design: Foldable
Package weight: 6.5 kg
