ITALKO MINI LVLP Spray Gun

ITALKO MINI LVLP Spray Gun is a professional compact gravity-feed spray gun designed for automotive touch-ups, spot repairs and other precision coating applications.

LVLP (Low Volume Low Pressure) technology provides precise and controlled material application at reduced working pressure.

The lightweight body is manufactured from polished and anodised aluminium, providing excellent ergonomics and an easy-to-clean surface.

Its translucent 100 ml cup allows the remaining material level to be checked during use.

KEY FEATURES

• LVLP technology – provides controlled application at reduced working pressure.
• Compact design – ideal for touch-ups, spot repairs and detailed spraying.
• Precise spray pattern – supports accurate and consistent coating application.
• Three adjustable controls – allows adjustment of air pressure, material flow and spray pattern.
• Lightweight aluminium construction – provides durability and comfortable handling.
• Polished anodised body – helps simplify cleaning and maintenance.
• Translucent cup – allows approximate monitoring of the remaining material.
• Gravity-feed design – provides reliable material delivery from the top-mounted cup.

SUITABLE FOR

• Automotive touch-ups and spot repairs
• Paints and automotive coatings
• Clear coats
• Patinas
• Wood stains
• Detailed and precision coating work

The viscosity of the applied material should not exceed 18–20 seconds when measured using a 4 mm Ford viscosity cup.

TECHNICAL SPECIFICATION

Model: MINI
Technology: LVLP (Low Volume Low Pressure)
Type: Gravity-feed spray gun
Nozzle size: 1.2 mm
Cup capacity: 100 ml
Working pressure: 1.5–3.5 bar
Air consumption: 210–325 L/min
Air inlet thread: 1/4"
Body material: Polished and anodised aluminium
Maximum material viscosity: 18–20 seconds using a 4 mm Ford cup
Adjustments: Air pressure, material flow and spray pattern

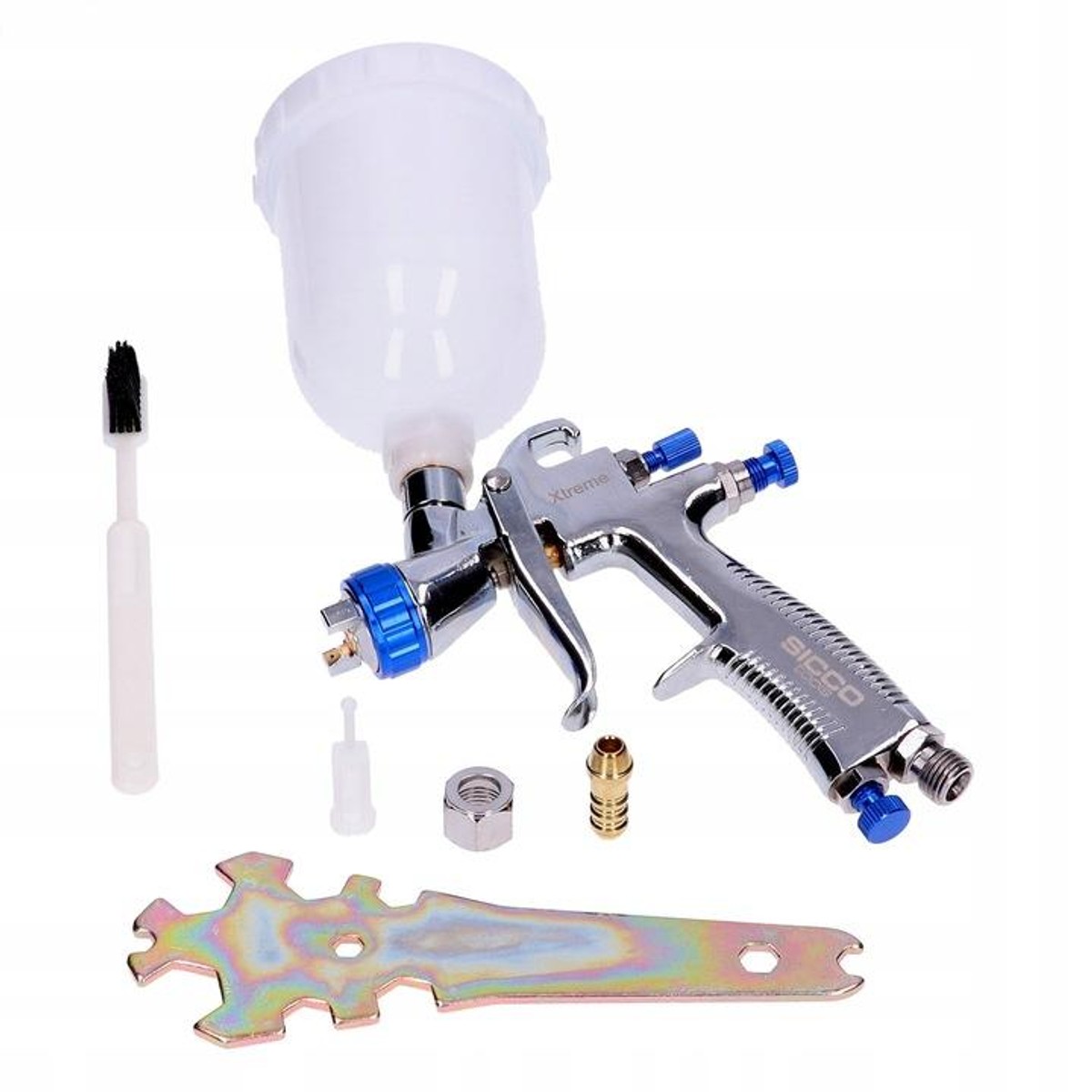

KIT CONTENTS

• ITALKO MINI LVLP Spray Gun with 1.2 mm nozzle
• 100 ml gravity-feed cup
